Car Seal strip
Product detail information
Details:

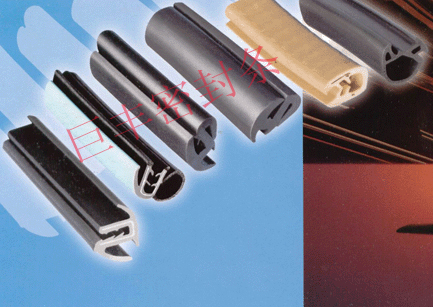

Automobile Seal Strip





The automobile mainly is by has the good elasticity and the anti-compression deformation, bear aged, the ozone, the chemical action, the wide application temperature scope (- 40`C~+120`C) three Yuan second grade third rubber (EPDM) rubber with the packing to become spongy with bonds densely becomes, contains the unique metal jig and the tongue shape buckle, firm durable, favors the installment, already for a long time formed a complete set with each big automobile manufacturer.
Product specification:Suggested is suitable the temperature range:
PVCmaterial quality -20 °F - 150 °F (-29℃ - 65.5℃)
EPDMmaterial quality -40 °F - 248 °F (-40℃ - 120℃)
Internal metal jig material:Aluminum or steel

Manufacture standard:
1
TB 1964-87《Passenger train Windows and doors Use Packing Inspection procedure》2HG/T 3088-1987《Vehicles Windows and doors Rubber Packing》

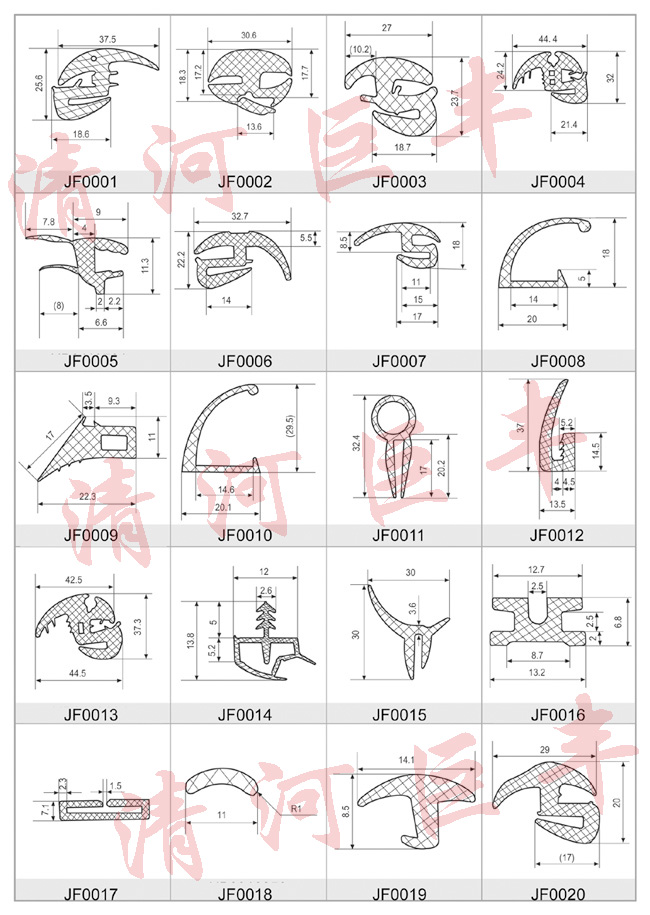

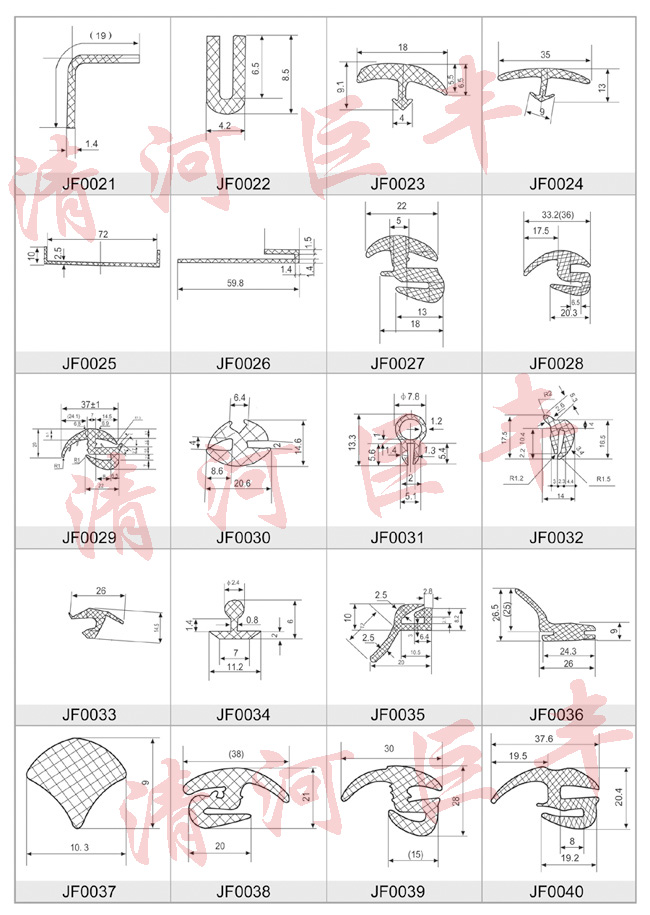

 Partial product schematic drawing (Other styles may make to order):

(diagram for reference only, please call us to enquire the specific product standards) Tel→:0319-7502102

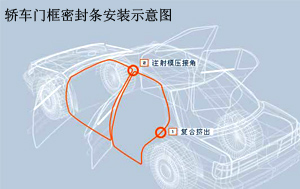

Seal strip for car door frames

It is made up of solid rubber and sponge foam tube. There is a metal frame for forming and fixing in the solid rubber. The sponge tube is deformable when pressed and recovers when the pressure goes off, thus the seal is guaranteed. In addition, the lip part is decorative. If it is made of colorful rubber or woven objects are attached, the tint will be more beautiful.

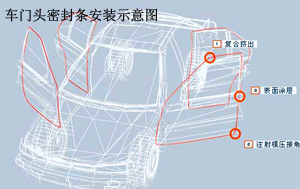

Car door Seal strip



Consisting of either solid rubber fundus and sponge lip or whole sponge foam tube, it, together with the door frame strip, is used to seal the gap between the car door and the car body.

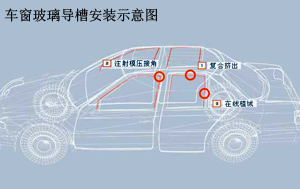

Guide groove of the car window glass

Fixed in the door or window frame, it is made up of hard and soft solid rubber with a metal framework built in it. Every side is flocked for lower noise and the glass freely going up and down.





Inside Seal strip and outside Seal strip for car windows

The Seal strip, flocked and made of single rubber, makes the car more beautiful.

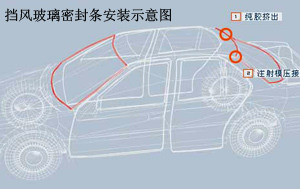

Windshield Seal strip

The Seal strip for the front and rare windshield is fixed between the windshield and the frame. It consists of single rubber strip formed by extrusion and jointing corners.

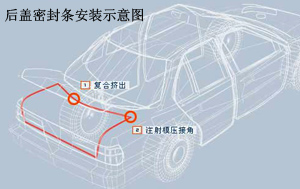

Front cover Seal strip

Consisting of solid rubber and sponge foam tube, it is used to guarantee the seal when the rare cover closes.

Guide groove of the car window glass

Consisting of solid rubber and sponge foam tube, it is used to guarantee the seal when the rare cover closes.








Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Variant Product Name:

Upacking

Boot Seal strip

Compounded rubber Seal strip

Seal strip for car doors and windows

Udecorative Seal strip

Engine Seal strip

Windshield Seal strip

Seal strip for glass of the car window

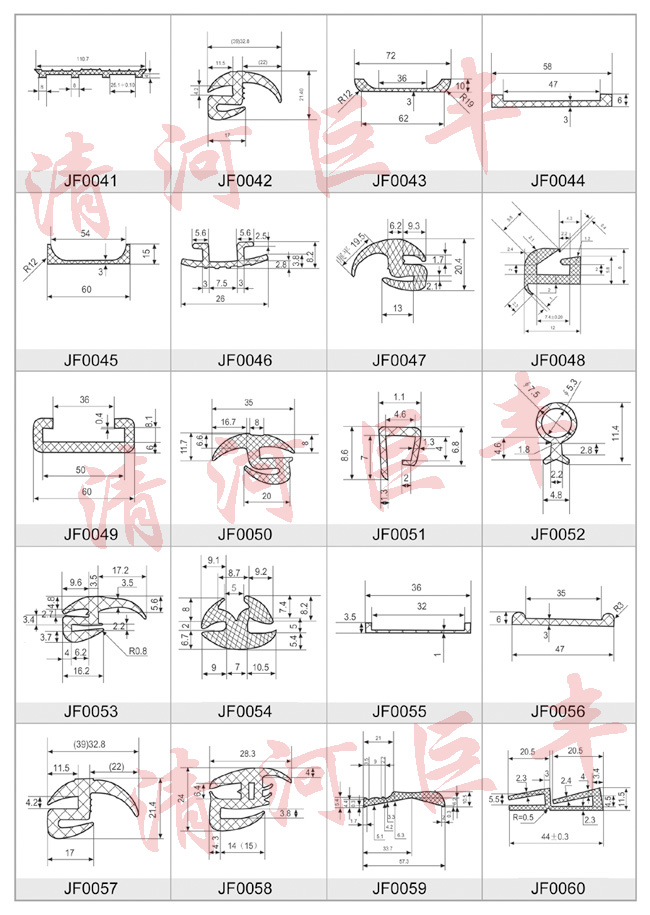

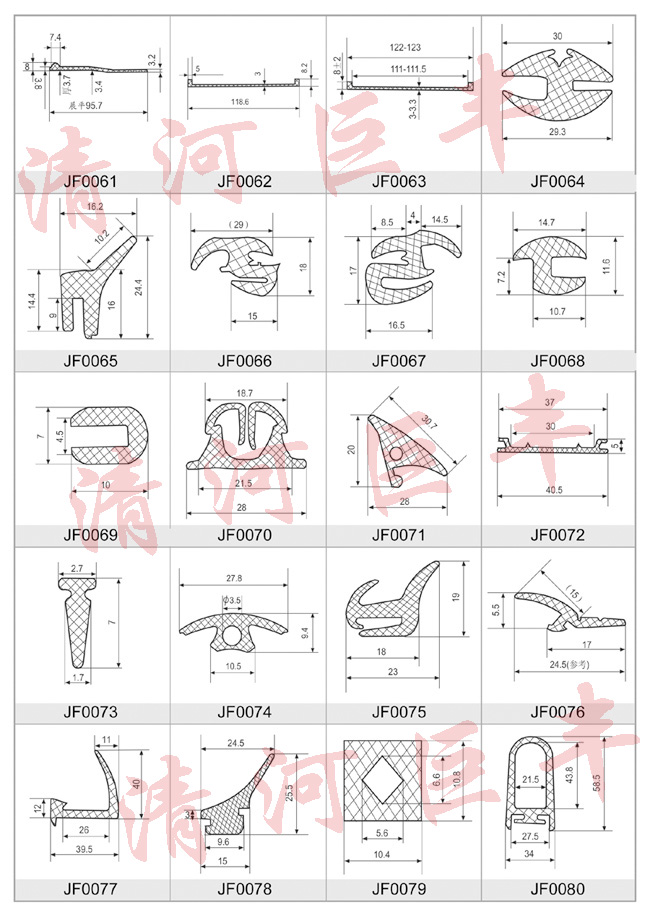

 ※ Below is the partial products schematic drawing, may according to your request to make to order each kind of style.
