Seal Strip for Panel Walls

Product detail information

Curtain wall construction with rubber seal (pad) "mainly for large buildings in the glass wall. The product, without prejudice to the overall aesthetics of the building under the premise of enhancing the building of wind waterproof performance, a solid wall of glass Structure, and enhance the safety of buildings. At present, the use of most species is EPDM rubber and thermoplastic ethylene propylene diene monomer (santoprene), and some manufacturers have chosen modified silicone rubber and PVC

■ Production criterion
    1、GB12002-89《Seal Strip for PVC-U-steel Doors and Windows》
    2、GB320 281NAF05-2000《Perduren Seal Strip for Panel Walls》
    3、ISO3934(GB10712)《Rubber Seal Strip for Buildings— Preforming Solid Core Perduren Materials》

■ Some products section Map(The product concrete color may according to customer request ordering.)

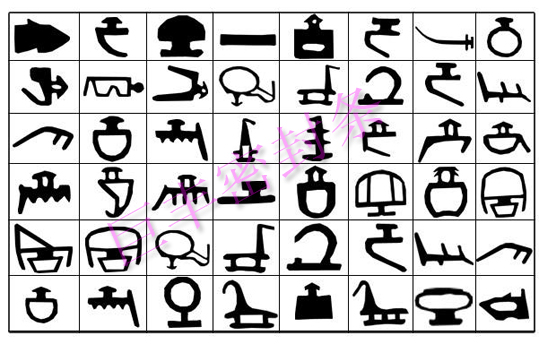

Partial product schematic drawing（Other styles may make to order）：

(diagram for reference only, please call us to enquire the specific product standards)　Tel→：0319-7502102

Series 1

Model	Spec	Cross-section diagram	Model	Spec	Cross-section diagram
YTMQ-1	8×5.5×4		YTMQ-14	11.3×12.7×5
YTMQ-2	12×8.5×7.5		YTMQ-15	64×7.5×9.8
YTMQ-3	22×18		YTMQ-16	19.5×9×6.5
YTMQ-4	14.4×6		YTMQ-17	20×12.5×5
YTMQ-5	6.7×6×2		YTMQ-18	11×9×6
YTMQ-6	10.8×3.5×5		YTMQ-19	12.6×10.8×7
YTMQ-7	10×8×5.2		YTMQ-20	13×5.6
YTMQ-8	16×11×6.5		YTMQ-21	18×14×6
YTMQ-9	6.6×6×4.4		YTMQ-22	22×6×7.7
YTMQ-10	28×28×5.2		YTMQ-23	6×4.5
YTMQ-11	5.5×6×8.2		YTMQ-24	6×1.6×8.5
YTMQ-12	9×7×7.5		YTMQ-25	11×9.5×8.3
YTMQ-13	16×9.5×11.2		YTMQ-26	7.4×6.3×5.1

Series 2

Series 3

Series 4

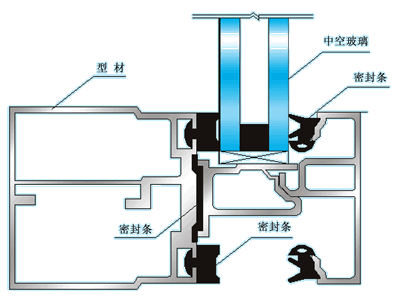

■ Diagram illustrating the installation of our products

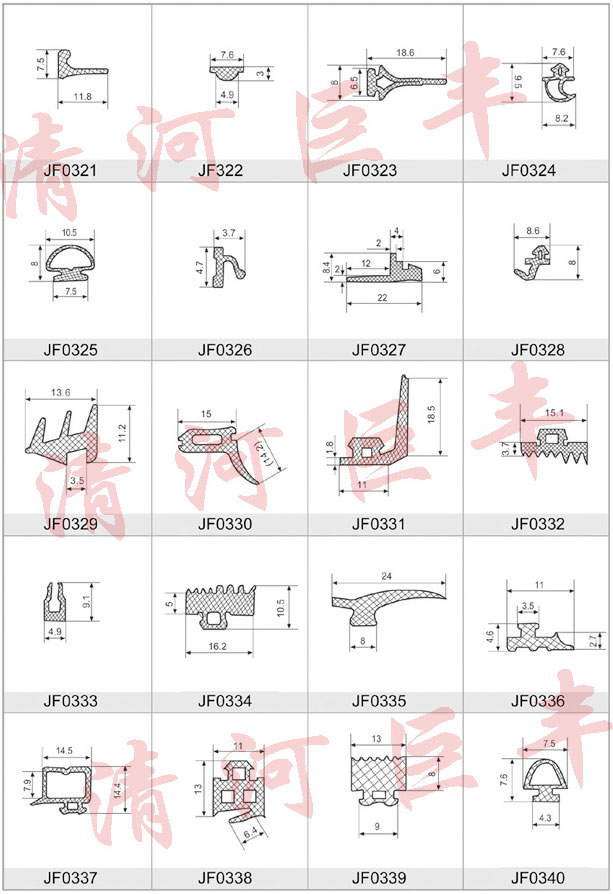

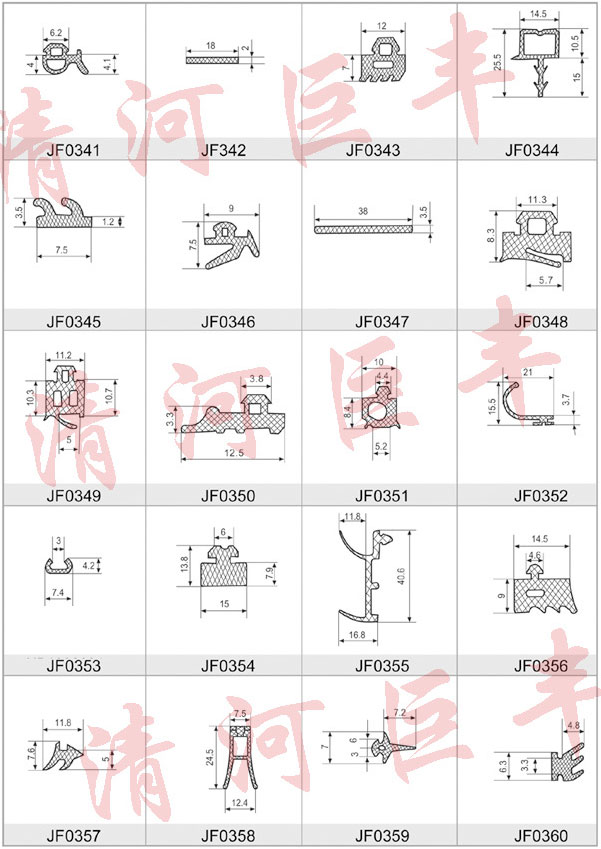

※ Below is the partial products schematic drawing, may according to your request to make to order each kind of style.
