Seal Strip for PVC-U-steel Doors and Windows
Product detail information
In recent years, PVC-U steel doors and windows have been popular for erosion resistance, weatherproof, sound isolation and heat isolation. Our product, Seal strip for PVC-U steel doors and windows is not only smooth, watertight but also decorative. Though a few manufacturers choose modified PVC, most major demanding manufacturers prefer EPDM or thermoplastic EPDM.

■ Production criterion
    1、GB12002-89《Seal Strip for PVC-U-steel Doors and Windows》
    2、GB320 281NAF05-2000《Perduren Seal Strip for Panel Walls》
    3、ISO3934(GB10712)《Rubber Seal Strip for Buildings— Preforming Solid Core Perduren Materials》

■ Some products section Map(The product concrete color may according to customer request ordering.)

Partial product schematic drawing(Other styles may make to order):
(iagram for reference only, please call us to enquire the specific product standards) Tel→0319-7502102
Series 1
Spec Cross-section diagram Model
Spec Cross-section diagram
YTSG-1 10.3×8×5 YTSG-9 7.5×6.5×3.7
YTSG-2 16×8.3×4.8 YTSG-10 11.8×8.5×3
YTSG-3 16×10×4.8 YTSG-11 12.8×10×3
YTSG-4 9×9.5×3.6 YTSG-12 11×6.3×3
YTSG-5 13×8×4.8 YTSG-13 12.5×5.8×3
YTSG-6 10.8×8.7×4.4 YTSG-14 20.5×8×7.25
YTSG-7 9.5×8.5×5 YTSG-15 13×8.3×5.2
YTSG-8 11.8×10×6 YTSG-16 23.8×18×20
Series 2

Series 3

Series 4
Series 5
Series 6

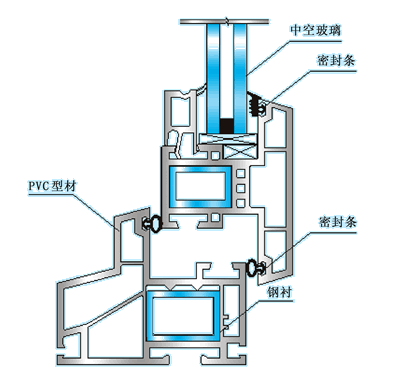

■ Diagram illustrating the installation of our products

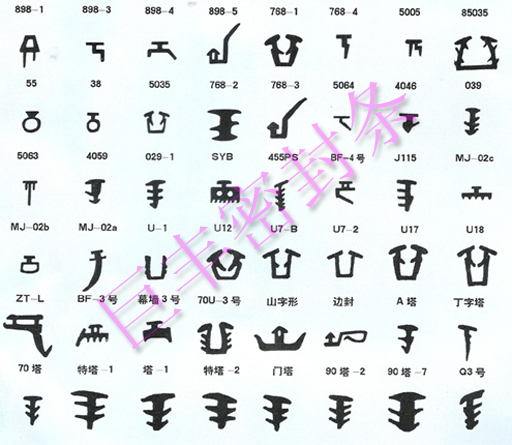

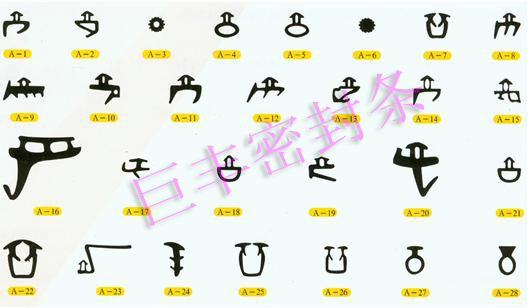

            ※ Below is the partial products schematic drawing, may according to your request to make to order each kind of style.
