Returns the list of products
Change Color View:
Wooden gate packing (sliding way)
Product detail information
The wooden gate packing in the wooden gate, the burglar-proof door, on rollers gate, each kind of aluminum models the windows and doors and so on in other windows and doors to play the very essential role. Most obvious is quakeproof, On-line installs it after door shield reduced (even vanishes) closed (window) when collided the sound, Gets up a protective function to the door leaf edge, And lengthened the gate life, reduced the noise. Next is the seal, the absorption of shock, inside and outside the isolation room the air, Effective played a heat preservation, the energy conservation role, moreover could prevent the mosquito and so on the small insect drilled to the room in.

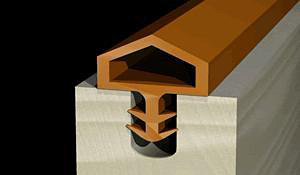

The slot packing is starts out a trough on the doorframe, the packing installment in, this kind of slot seal, causes in the packing inserting trough not easy to fall off, the installment is simple.

Major role:

Insect proofing

Windproof

Separates the light

Anti-collision

Sound insulation

Separates the smoke

Waterproofing

Characteristics:
●Outstanding bears the weather anti-aging performance  ●Cannot have the dialysis phenomenon    ●Dense flexible packing
●The dual degree of hardness cannot stretch      ●May provide all section product     ●High quality at low price
Product material quality:
1st, uses imports PVC, the TPE two kind of material qualities supplies the choice
The applicable scope and installs the method:
1. is suitable on various types gate, the window frame.
2. installs the way: Directly anti- (frame) on widens 2mm deep 6mm in the gate the scoop channel, according to inserts directly the packing the trough then.
Manufacture standard:
1st,GB12002-89《Models Steel Windows and doors To use Packing》
2nd,GB320 281NAF05-2000《Construction Curtain wall Uses Cured rubber Packin》
3rd,ISO3934(GB10712)《Construction Rubber Gasket - Seals Glass window And Panel Takes shape In advance Solid Core Cured rubber Material - Standard》
Partial product schematic drawing(Other styles may make to order):
(diagram for reference only, please call us to enquire the specific product standards) Tel→0319-7502102
Model Product Map Specs(W×H/mm) Color Material Packing Role and characteristics
KM-DT1 Specs:7X9mm
Seal gap:3X6mm
Brown
White
Gray
Black
Yellow
Modification pvc 300m/vol

1200m/Box
Role: separated cold and heat, noise, stall prostitution, reduce business voice.

Features: Slot type, embedded tank is not easy shedding
KM-DT2 Specs:8X10mm
Seal gap:3X6mm
Brown
White
Gray
Black
Yellow
Ibid Ibid
KM-DT3 Specs:8X10mm
Seal gap:2X6mm
Brown
White
Gray
Black
Yellow
Ibid Ibid
KM-DT4 Specs:10X11mm
Seal gap:4X6mm
Brown
White
Gray
Black
Yellow
Ibid Ibid
KM-DT5 Specs:9X12mm
Seal gap:4X6mm
Brown
White
Gray
Black
Black
Ibid Ibid
KM-DT6 Specs:9X12mm
Seal gap:3X6mm
Brown
White
Gray
Black
Yellow
Ibid Ibid
KM-DT7 Specs:10X12mm
Seal gap:4X6mm
Brown
White
Gray
Black
Yellow
Ibid Ibid

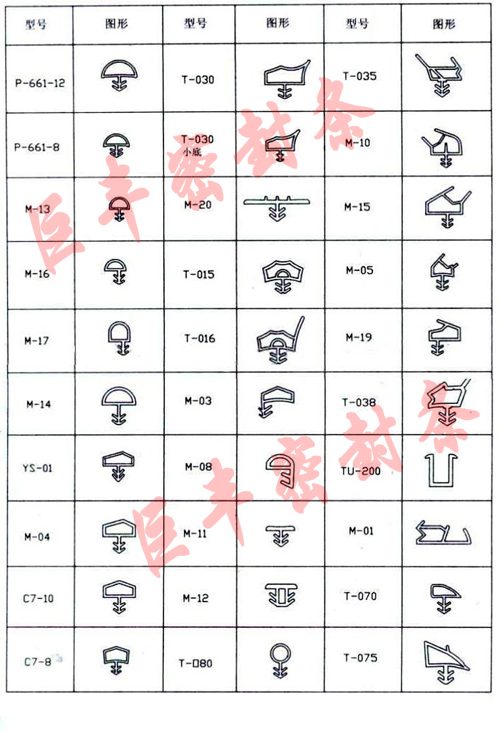

   Other common part of the product diagram:
Note: 1. this company all slot wooden gate packing product material quality is the modified PVC material
    2.product concrete colors may act according to customer request ordering.
    3.product specifications as well as the packing request may request according to the customer to carry on ordering.
Variant product names:
Gland strip for wooden doors Gland strip for doors and windows Runner gland strip Inlaid gland strip Inlaid gland strip DTT-gland strip DT-gland strip
Shock absorption strip Door gland strip Gland strip for sliding doors Shock absorption strip for doors and windows Gland strip for moulded doors Gland strip for household doors and windows Gland strip for doors and windows in buildings
